Esse Bakeheart

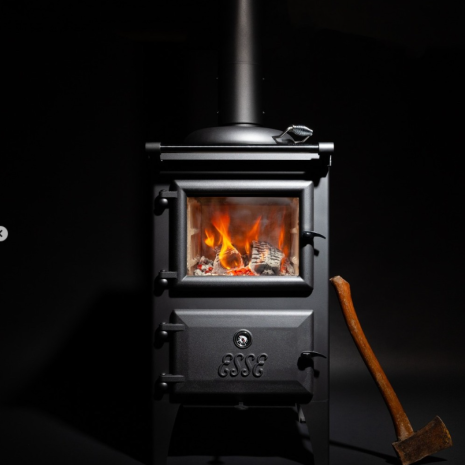

Esse Bakeheart Wood fired cook stove
Equally at home in a farmhouse kitchen in the country or a remote retreat in the wilderness Bakeheart brings a little luxury to living off-grid. The Bakeheart offers much more than a standard log burner, this practical and versatile cook stove provides a reliable source of heat, sustenance and comfort wherever its required.
Bakeheart is an elegantly proportioned wood-fired cook stove that provides room-filling radiant heat with a graduated temperature cooking hob. A racked firebox enables cooking over direct heat and the generous 32-litre oven is perfect for baking cookies or succulent stews.
Handbuilt in Britain Bakeheart employs ESSE’s latest clean combustion technology to achieve A grade energy efficiency ratings. It incorporates convection panels that radiate warmth out to heat the whole room – just lie a traditional wood-burning stove. Heat output 5.0kW
We have 1 x Static Dry Esse Bakeheart Showroom Model on sale. See landing page: https://moruyaheatingandcooling.com.au/product/esse-bakeheart/
- Rear air fed spacious firebox provides a cleaner burn
- Accommodates dry, seasoned logs of up to 360mm (14in)
- Single air control to adjust the burn rate
- ESSE “Airwash” Technology maintains a clear screen
- Optional wetback, and side shelves
See the Bakeheart in action
Bakeheart Technical Specifications
| Specifications | |
|---|---|
| Energy rating | A |
| Heat output | 5kW |
| Hot Water | 2.8kW |
| Weight | 192kg |
| Flue pipe diameter | 150mm (6inch) |
| Single air control | Yes |
| Approved for use on decorative hearths | Yes |
| Graduated hotplate temperature range | 190-300°C |
| Direct air kit compatible | Yes |
| Oven Capacity | |
| Bottom | 32ltr |
| Oven Dimensions | |
| Width | 350mm |
| Height | 200mm |
| Depth | 450mm |
| Clearance to Combustibles (with flue heat shield) | |
|---|---|
| Rear | 150mm |
| Side | 130mm (if bench is level or below hob height) |
| Side | 500mm (if bench/wall is above hob height) |
| Corner | 175mm |
| Clearance to Combustibles (without flue heat shield) | |
| Rear | 225mm |
| Side | 130mm (if bench is level or below hob height) |
| Side | 500mm (if bench/wall is above hob height) |
| Corner | 175mm |
| Clearances to non combustible (without flue heat shield) | |
| Rear | 25mm |
| Side | 10mm |
| Corner | 25mm |
| Emissions | |
| PM | 23 |
| OGC | 54 |
| Carbon Monoxide | 0.08% |
| Nitrous oxides | 82 |
| Softwood Particulate Emissions factor | 0.6g/kg |
| Softwood Efficiency | 67% |
| Hardwood Particulate Emissions factor | 1.4g/kg |
| Hardwood Efficiency | 66% |
| Technical Information | |
| Combustion air requirements | 29m³/h |
| Minimum chimney draught | 12Pa |
| Mean flue gas temperature | 170°C |
| Flue gas mass flow | 10g/s |
| Heat to room | 780m²>100m² |
| Average oven temp | 180°C |
| Max oven temp | 240°C |
